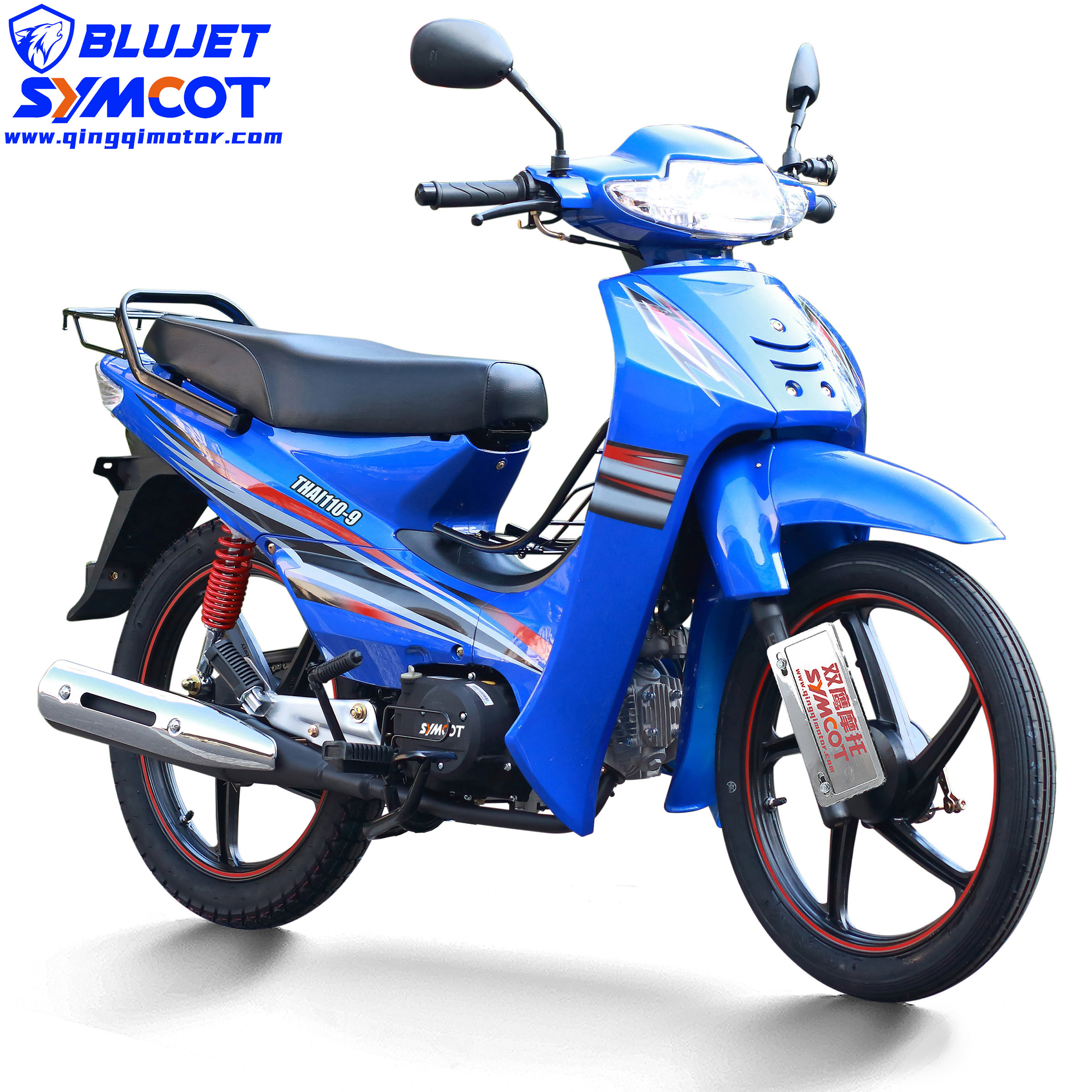

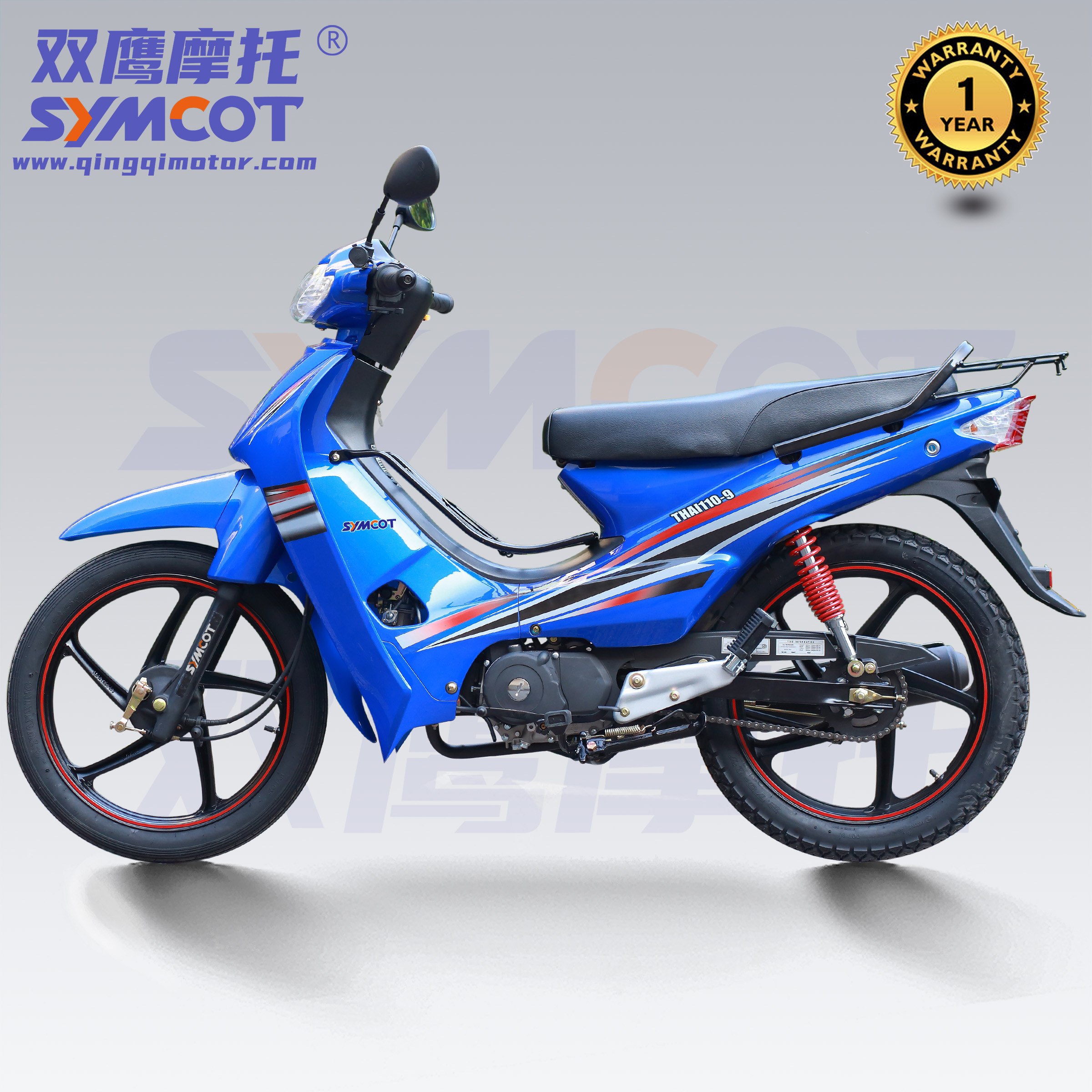

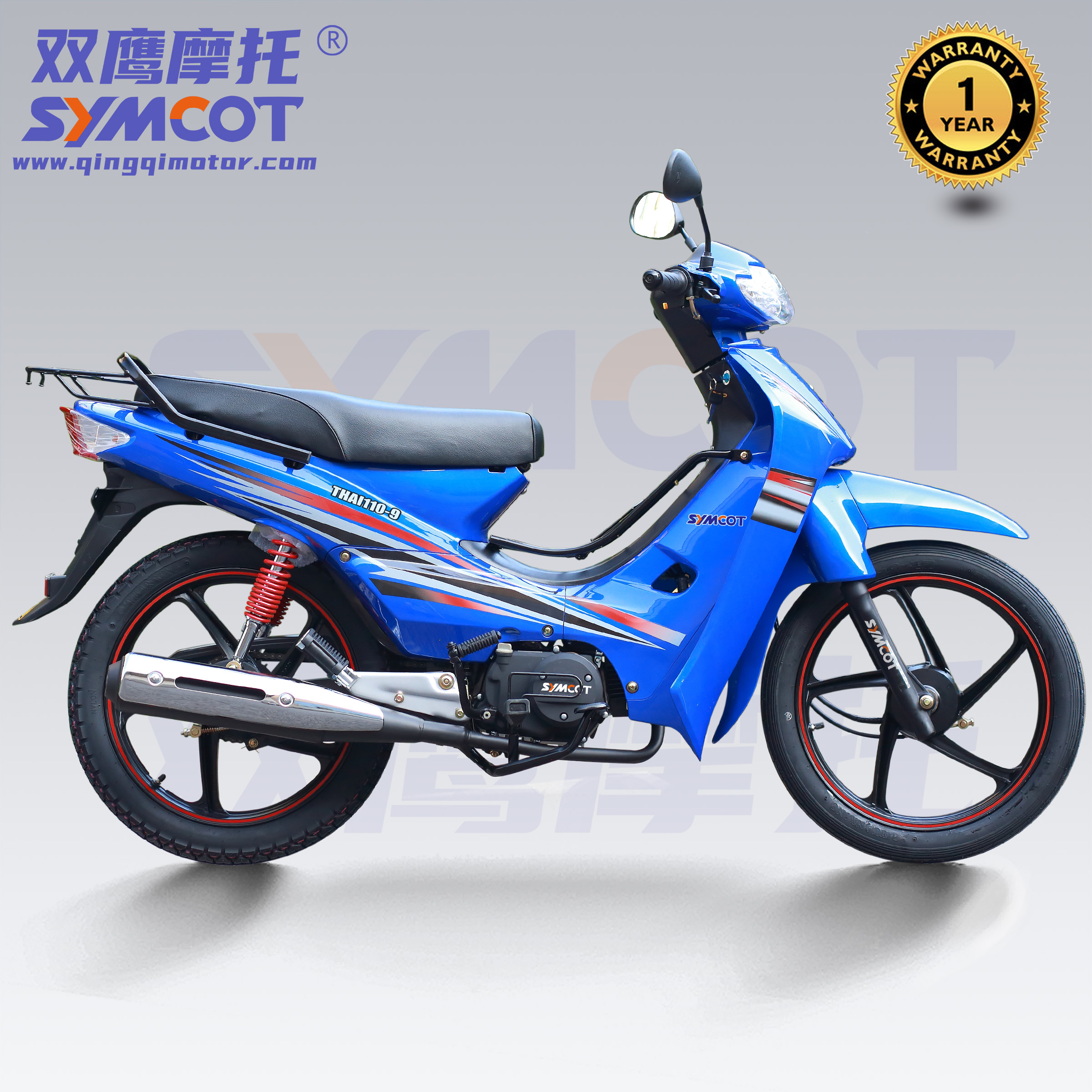

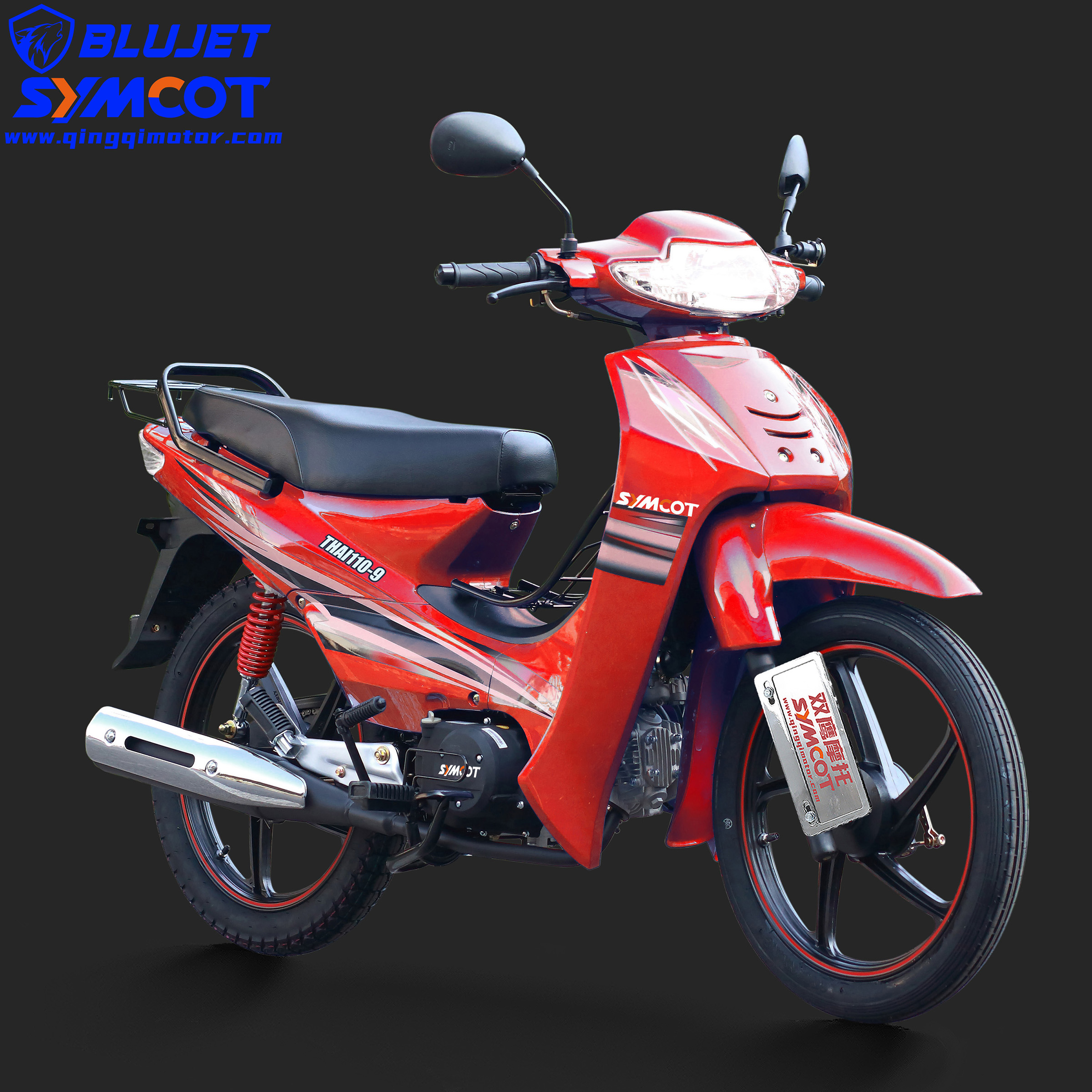

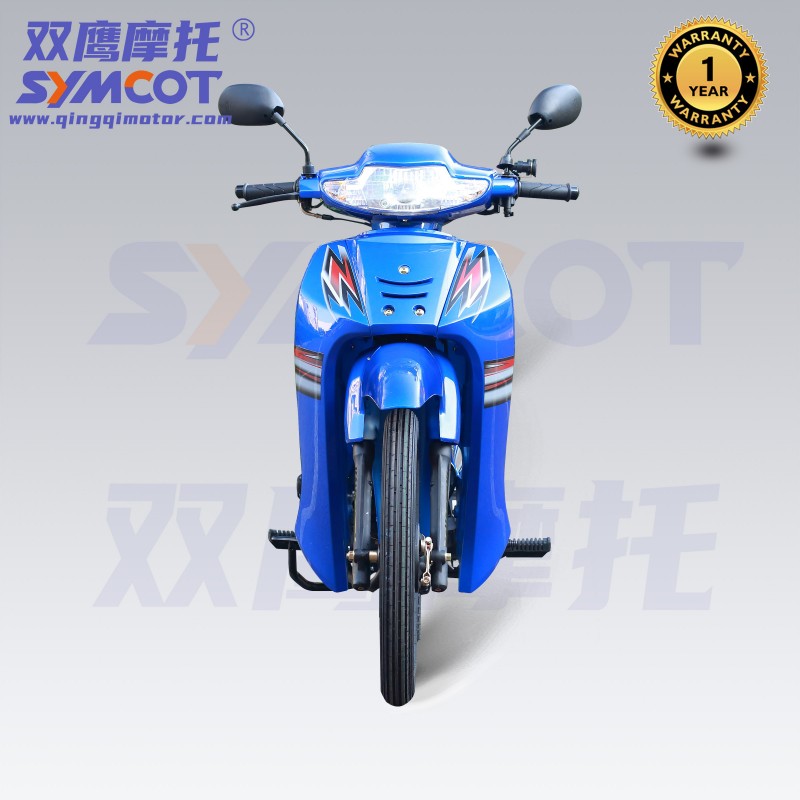

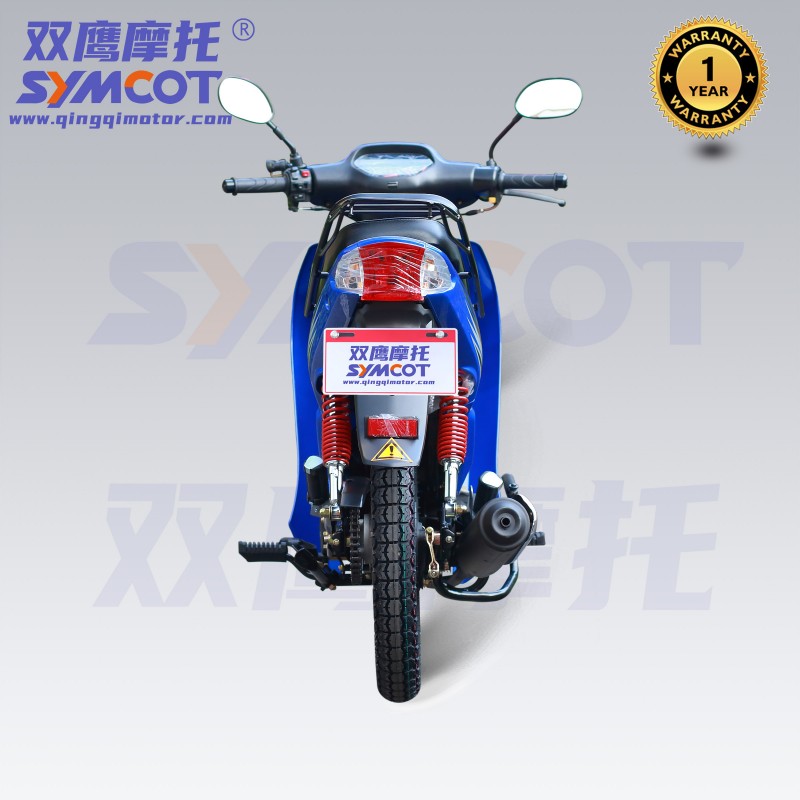

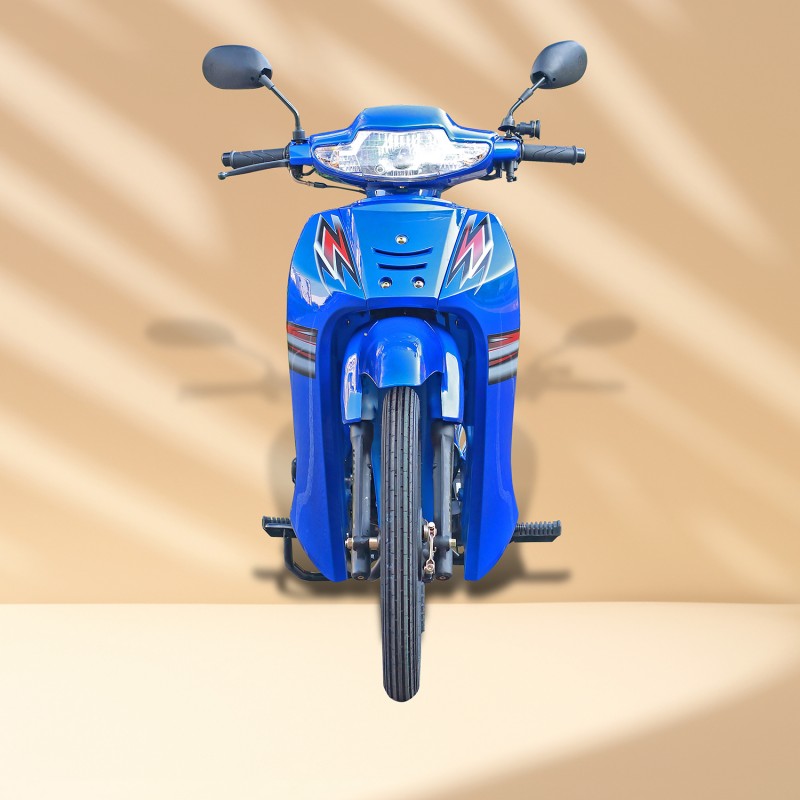

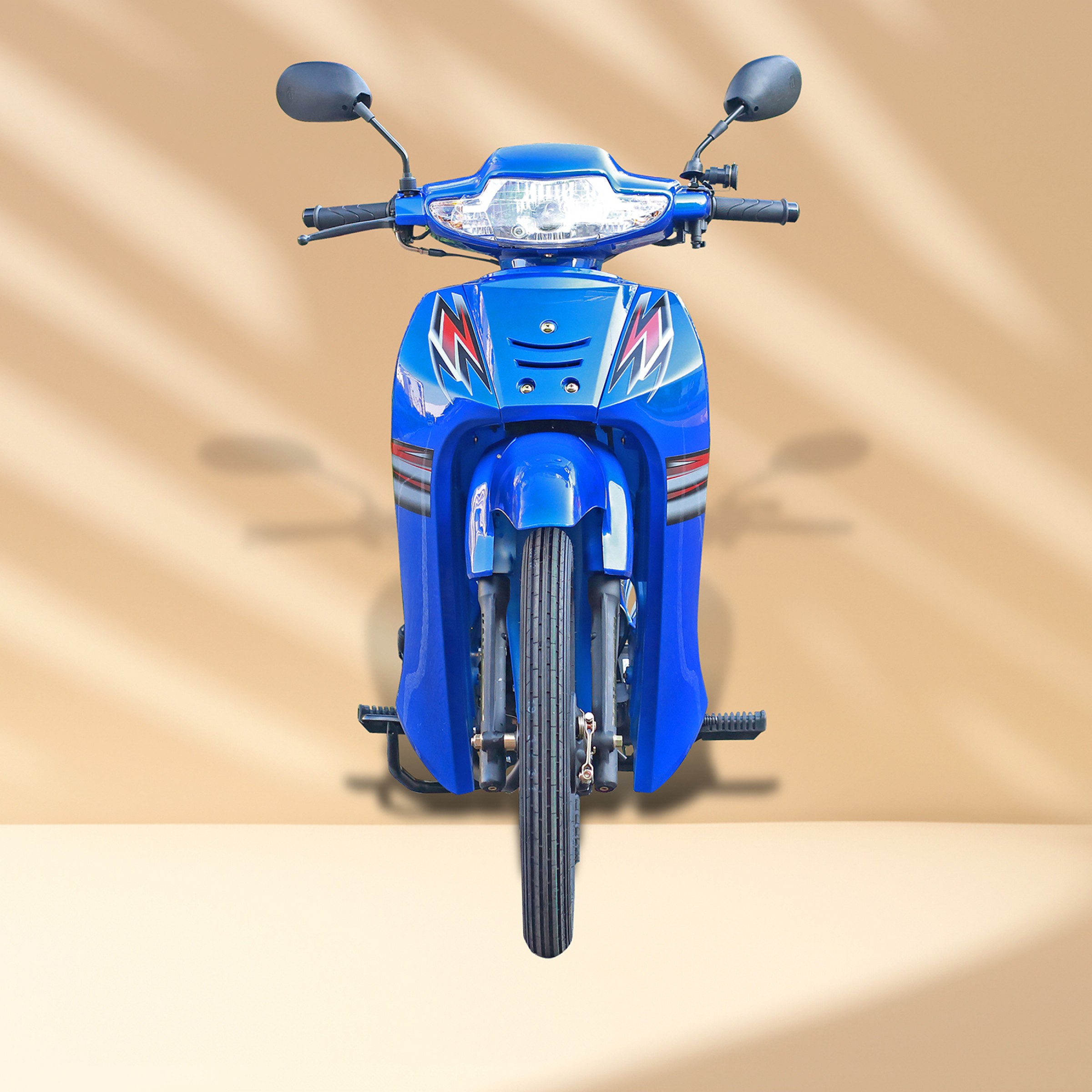

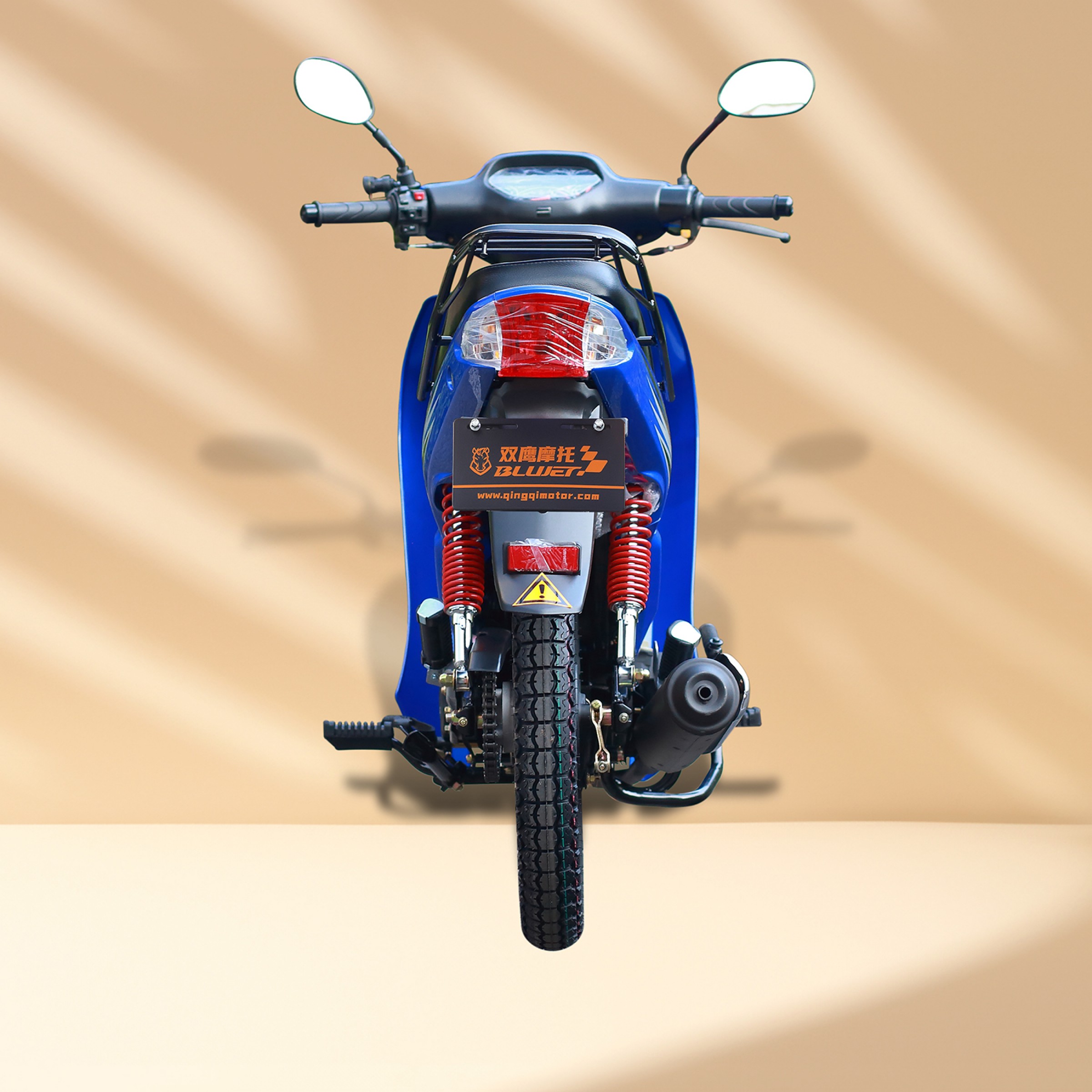

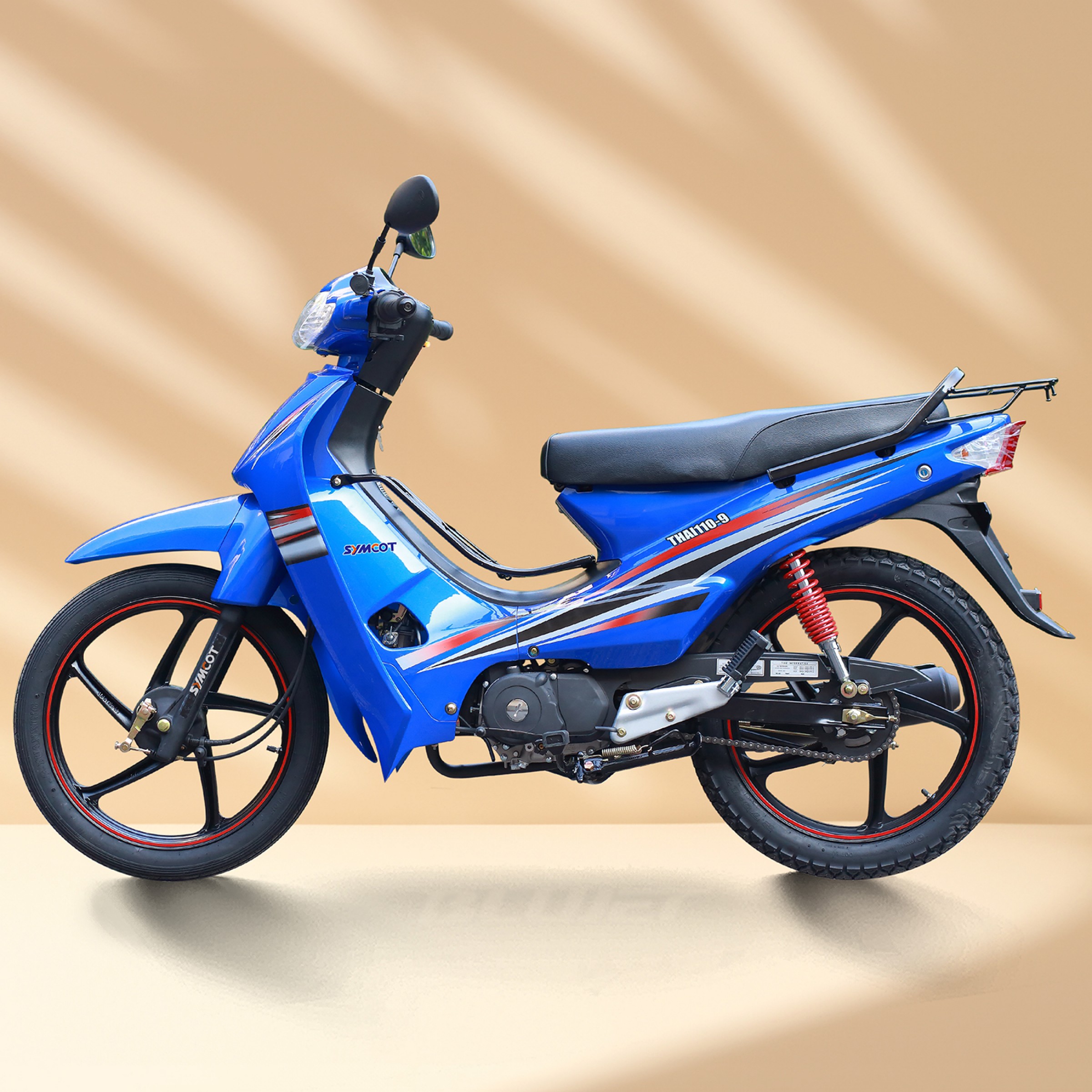

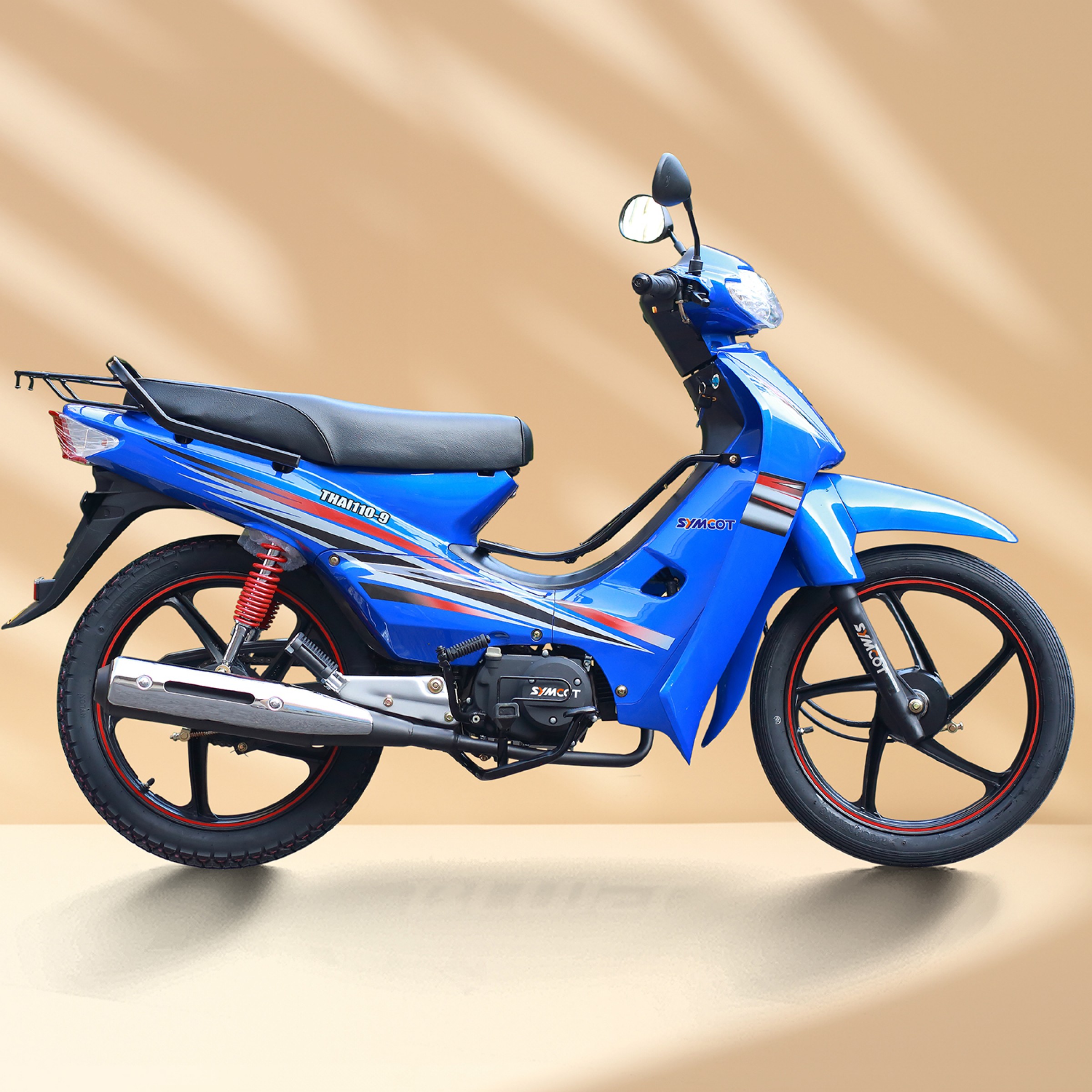

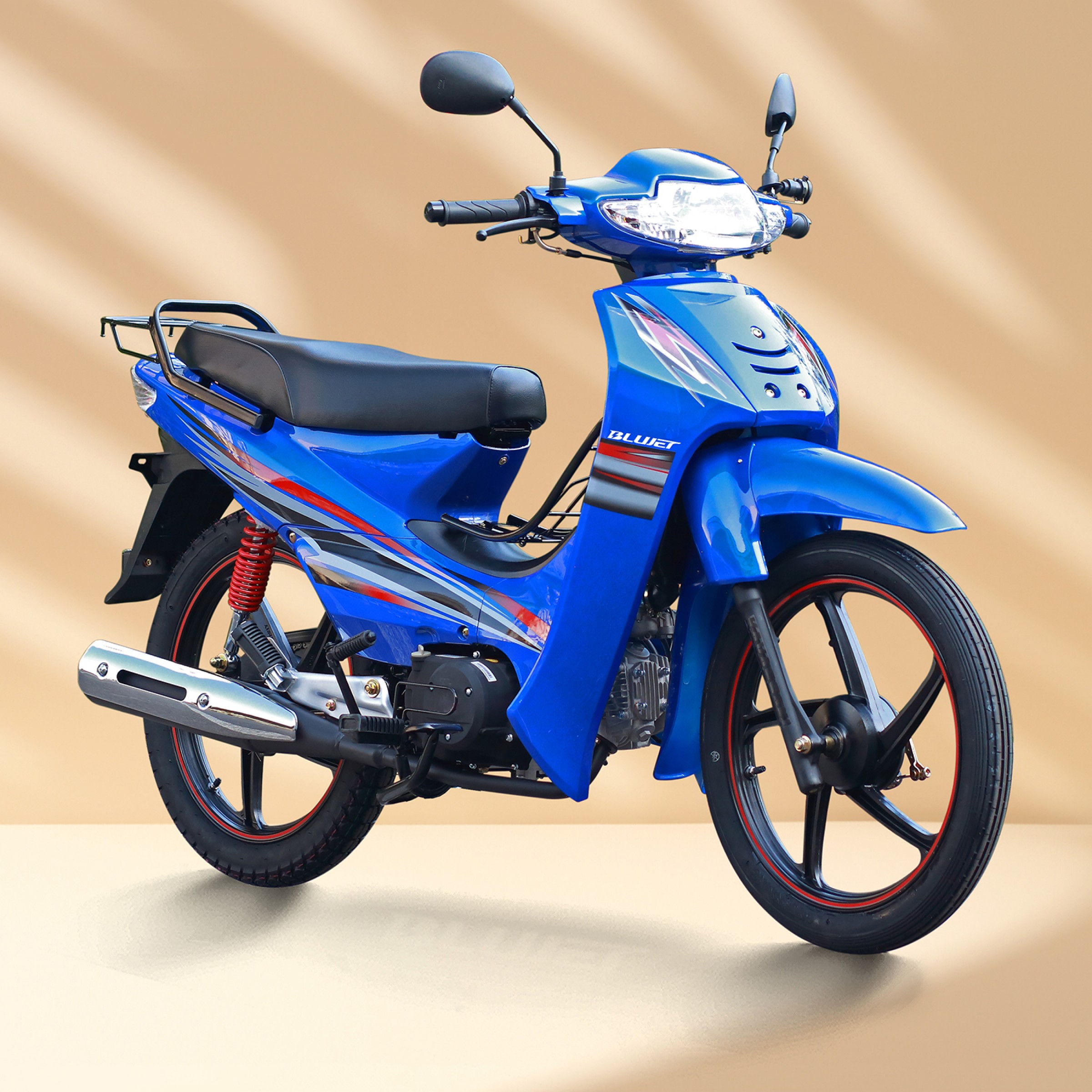

Thai 110

$500.00 Price drop reminder
  • Availability: 1000

Total $500.00
This product has a minimum quantity of 32
 Model THAI 110
EEC number
Dimension.(L×W×H)(mm) 1910×685×1090
Wheel base(mm) 1250
Min Ground clearance(mm) 120
Seat height(mm) 770
Turning angle 48°
Min turning radius(mm) 1940
Front/Rear sprocket teeth 14/38
Gearshift 4-forward
Fuel tank(L) 3.8
 Fuel Type gasoline
Max. Load Capacity(kg) 150
Dead Weight(kg)
 Brake Mode  Front Wheel Drum brake
 Rear Wheel Drum brake
Brake Operation Mode Front Wheel Hand clip
Brake Operation Mode  Rear Wheel Kick
Wheel Rim Type Spoke, 1.50-17
Spoke, 1.75-17
Tire type with tube
Front tire 2.50-17
Rear tire 2.75-17
Headlight 12V  18W/18Wdouble
Winker 12V  10W
Batterymm 12N4-3B   120×70×92 with acid

 Engine Model 150FMG
Engine Type 1-Cylinder, 4-stroke, air-cool, Single Over Head Camshaft
Start Electric and kick
Ignition CDI
Bore×Stroke 50×49.5
Displacement(ml) 97
Compression rate 8.61
Magneto 12V 6 head, full phase
Oil Capacity(ml) 800
Spark plug A7TC
Spark clearance(mm) 0.6~0.7
Valve clearance(mm) 0.05~0.06
Lubriation type Press and splash
Carburetor PZ19
Transmission Constant mesh, 4-forward, with high shift protection
Clutch type Automatic, wet type, offcenter
Initial rate 3.722
Gears rate 1st: 3.273,2nd: 1.938,3rd: 1.350,4th: 1.043
Final trans Chain
Rotation direction Facing shaft, unclock wise
Size(mm) 477×395×280
Net Weight(kg) 25
Rated Power 4.6KW(7500r/min±5%)
Max Power 5.0KW(8000r/min±5%)
Max Torque 6.5N·m(5500-6500r/min)
Min fuel comsumption(g/kw.h) 367


Load Quantity 40HQ 105 units
